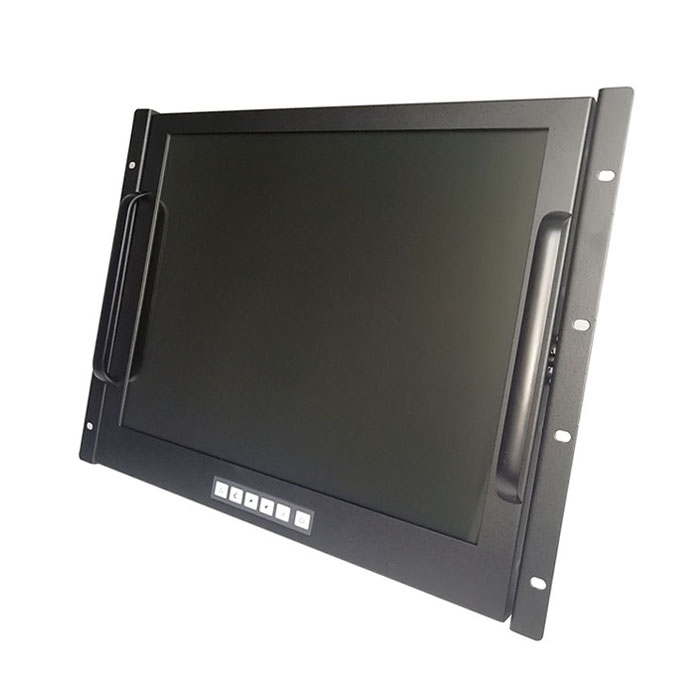

17 inch rackmount lcd display with optioanl input VGA DVI HDMI BNC AV S-vedio

RCIM-17

17 inch rackmount lcd display with optioanl input VGA DVI HDMI BNC AV S-vedio

Country of Origin: China
OEM/ODM accepted

Datasheet [1] Images

17 inch rackmount lcd display. Optioanl signal input VGA, DVI, HDMI, BNC, AV, S-vedio, touch screen optional

Features
  • 19" Compact 17" rack mount display monitor with 8U height
  • 17" SXGA TFT LCD Panel support 1280x1024 pixels
  • 90 °tilt adjustment while mounted in rack: +45 °~ -45 °
  • Input signal : VGA + DVI/HDMI + BNC,AV,S-vedio, Audio
  • 300 cd/m2 brightness
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)
  • Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
Specifications
Display
Display Type17" SXGA TFT LCD
Resolution1280x1024
Max.color16.7M
Luminance300 cd/m2
View Angle178 °(H) , 178 °(V)
Pixel Pitch0.264 x 0.264mm
Contrast Ratio1000:1
Response Time5 ms
LCD MTBF50,000hrs
Input Signals
RGB SignalD-SUB 15P Connector (female)
DC inputAviation 2pin Plug
DVI-D SignalDVI-D input 24pin connector (female)
Touch screen RS232 (option)D-SUB 9p connector (female)
Touch screen USB (option)USB-A type connector (female)
Available Options
Touch screenResistive Type with USB and RS232 controller
DC Power InputWide Range 8~30v DC input
Power supply
Standard100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
DC-DC PowerDC 8 ~ 30v input power module(optional)
Environmental
ConstructionHeavy duty steel and aluminum front panel
Operate temperature0 °C to 50 °C
Storage temperature-20 °C to 60 °C
Storage humidity10% to 90% non-condensing
Anti-Vibration17HZ-500 HZ 1G PTP
Anti-Shock1G / peak( 11m sec)
Certification and ApprovalsCE/FCC/ROHS
Packing info
Dimensions (WxHxD)482.6 x 354.8 x 48 mm
WeightNet: 7.0kg , Gross:10.3kg
Ordering informations
RCIM-1717" LCD Industrial Rack Mount Monitor with VGA + DVI +    Audio Input
RCIM-17TC17" LCD Industrial Rack Mount Monitor with VGA + DVI +    Audio Input, with touch screen and RS232 controller
RCIM-17TU17" LCD Industrial Rack Mount Monitor with VGA + DVI +    Audio Input, with touch screen and USB controller
