Network AppliancesNetwork security appliance3 GbE ports network appliance Desktop version

3 GbE ports network appliance Desktop version
IEC-511p-050E Send enquiry!
3 GbE ports network appliance Desktop version

Factory price
Country of Origin: China
OEM/ODM accepted

Datasheet [3] Images

Small network appliance with Demesions(WxDxH): 300x210x44.5 mm.

IEC-511p-050E Intel D525 CPU; w/ 1 x DDR3 Memory Slot(Max 4G Ram),  3 x GbE RJ45, w/o bypass, 56W Power Adaptor, Desktop Version

3 GbE ports network appliance with small chassis(WxDxH: 300x210x44.5)

The desktop network appliance IEC-511p-050E provides a high performance per watt ratio and watch faster response time in multitaking environments. Cost-Effective Solution The embedded Intel Atom processor and ICH8M chipset provides a stable, ultra-low power platform at an outstanding value-price point.Desktop Network Appliance with 3 gigabit network ports for SOHO, business and industrial environments. Operating System Windows 2000, 2003, XP, 7. Linux kernel 2.6 or above, OpenBSD, FreeBSD.

3 GbE ports network appliance( Desktop version, D525 CPU)

  • Low power Intel AtomTM Dual-core D525 processor, 1.8GHz, 1MB L2 cache
  • One 204-pin DDR3 SO-DIMM slots, up to 4GB Ram.
  • Three Intel PCIe GbE controllers
  • One RJ-45 RS-232 serial port
  • Supports 2 USB2.0, SATA, CF TypeII

Color Black
Front panel Silver PVC
Construction Heavy duty metal
Dimensions (D x W x H) 300x210x44.5mm
Platform Intel Pineview-D Platform
CPU Intel Atom 45nm dual core D525 1.8GHz processor, 1MB L2 cache
Chipset Intel ICH8M
System memory One 204-pin DDR3 SO-DIMM slots, up to 4GB
Interface One SATA interface, One CF interface
Hard Drive Support one 2.5" HDD bay
Compact Flash One CFII slot
LAN Port Three 10/100/1000Mbps RJ-45 ports
Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
External I/O
USB Two USB2.0
Indicator One Power LED, 1x HDD LED
Internal I/O
Video One DB-15 VGA port, support hot plug, resolution up to 2048x1536
USB Two USB2.0 Pin-header
Keyboard/Mouse One PS/2 keyboard and mouse port, onboard 1xPS/2 keyboard and mouse port Pin-header
COM One RS-232 Pin-head
WDT Software programmable supports 1~255sec System reset
Power supply
Power consumption 56W power supply
Power input 110 ~ 240VAC input
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 60°C
Storage Temperature --40°C ~ 70°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Shock Half sine wave 3G; 11ms 3axis
Vibration Meet MIL-STD-810F 514.5C-1
Weight(Gross) 5Kg
Ordering informations
Model No.
Samll chassis, Intel D525 CPU; w/ 1 x DDR3 Memory Slot(Max 4G Ram),  3 x GbE RJ45, w/o bypass, 56W Power Adaptor, Desktop Version

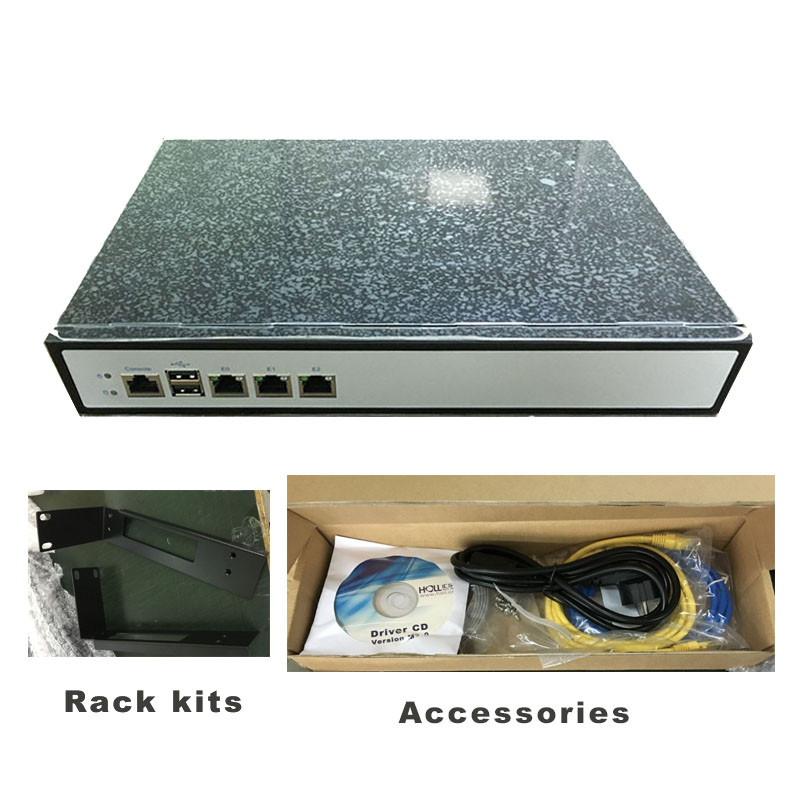

Packing List
  • 1 x IEC-511P system
  • 1 x1.5m RJ45 serial port cable (RJ-45 to DB-9 female port)
  • 1x 2m LAN Cable (Connect to switch)
  • 1x 2m LAN cable(Machine to machine)
  • 1x power cord
  • 1x Accessories box (Mounting brackets, rubber pads, screws bag)
